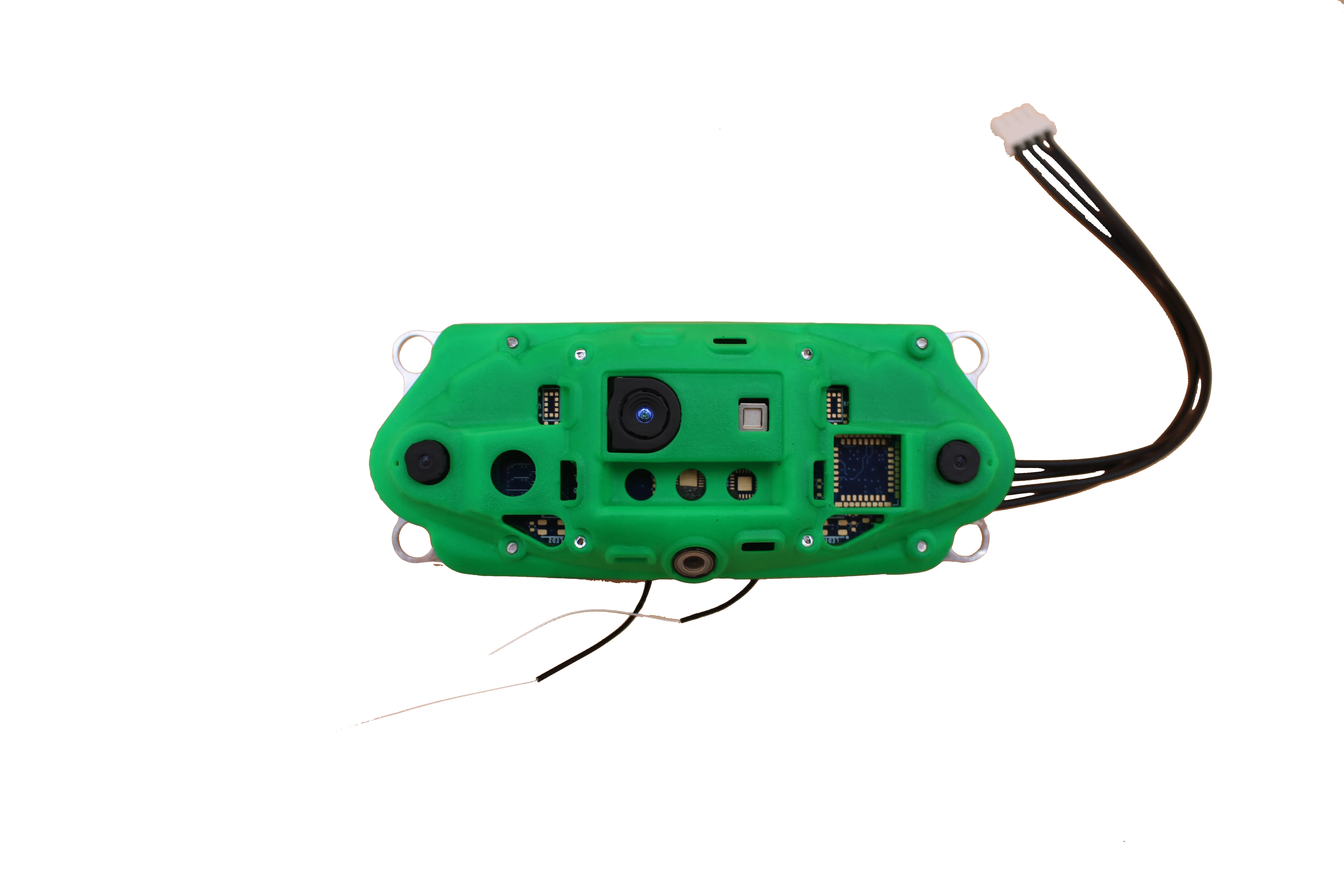

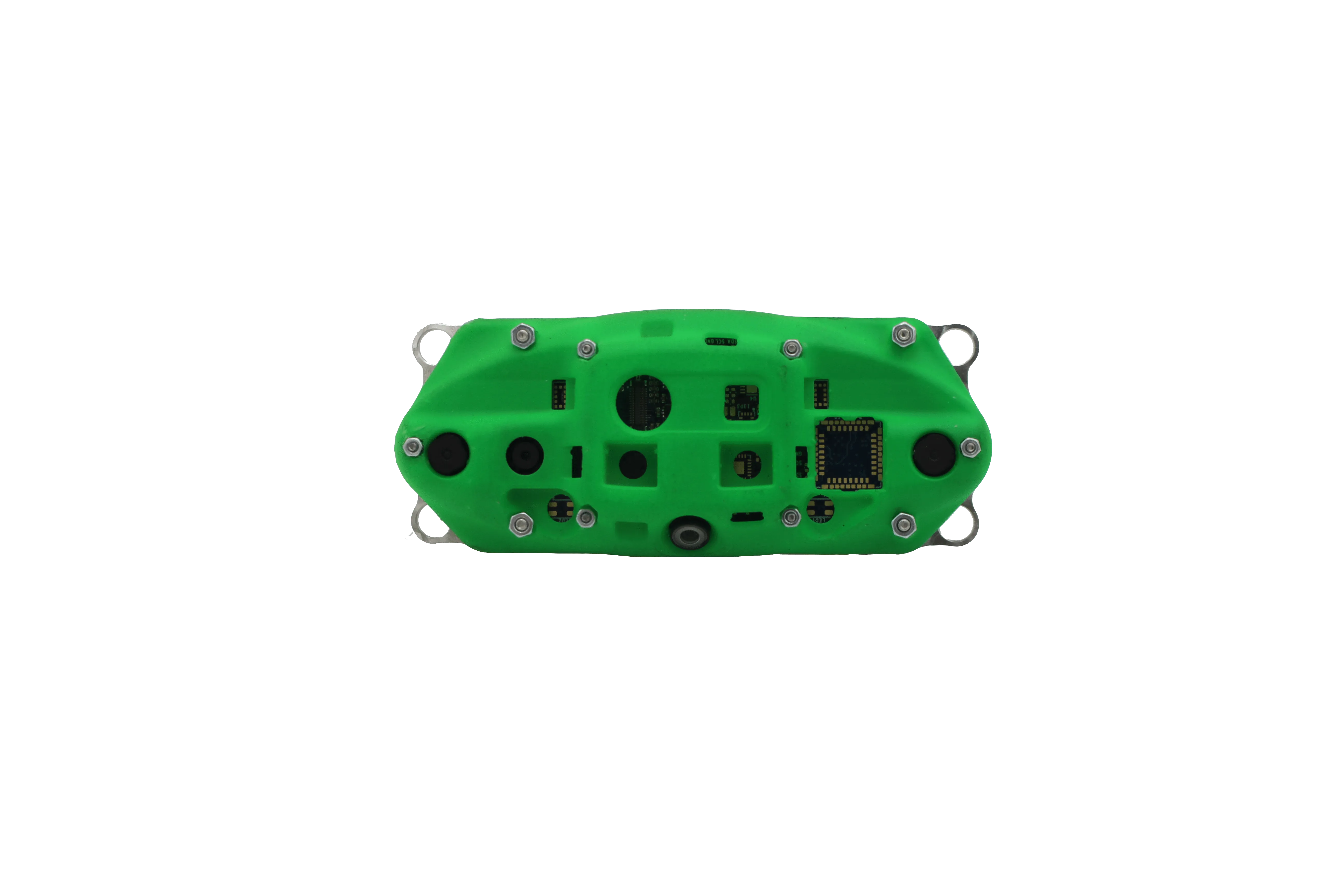

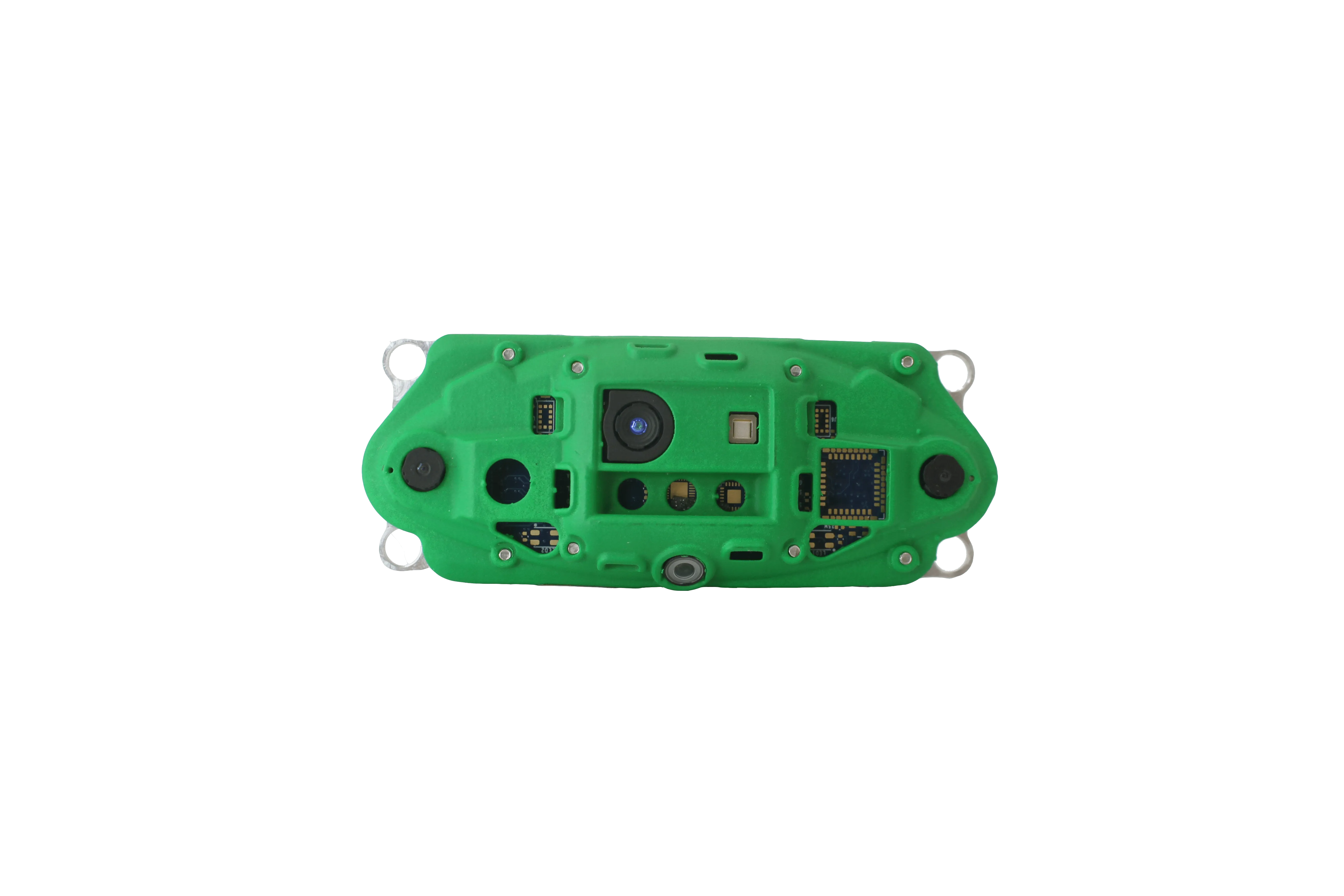

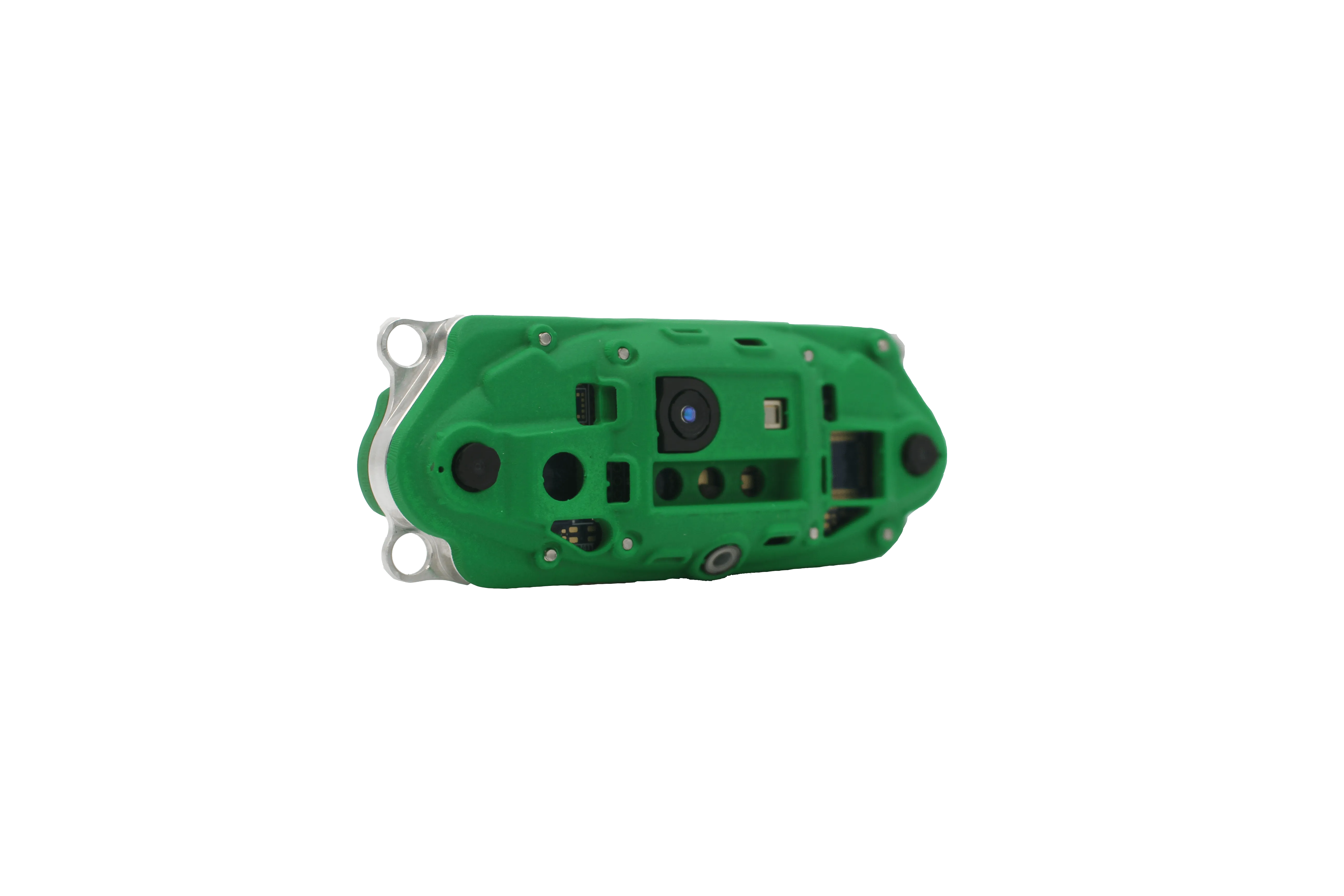

VOXL CAM - Smarter Perception, Safer Navigation, all in one Small Package

VOXL CAM is a state-of-the art, fully integrated robot perception system. The VOXL CAM condenses the computing power of seven PCBs and four concurrent image sensors into one compact platform powered by Blue UAS Framework components, VOXL and Flight Core.

The VOXL CAM is designed so developers and robot builders can mount directly onto their drone or robot and accelerate their system's path to autonomy. It is designed, tested and assembled in the USA with many of its components built in the US as well.

VOXL CAM has been integrated with the ArduPilot team for GPS-denied UAS flight! Check out their demo video

Note: is expected to be the last software release for this product.

Ready to Use Development Tools

Perception: Three onboard image sensor concurrency

  • Stereo Pair Image Sensors for outdoor depth mapping
  • Tracking Image Sensor for visual inertial odometry localization
  • Hi-Res 4k Image Sensor

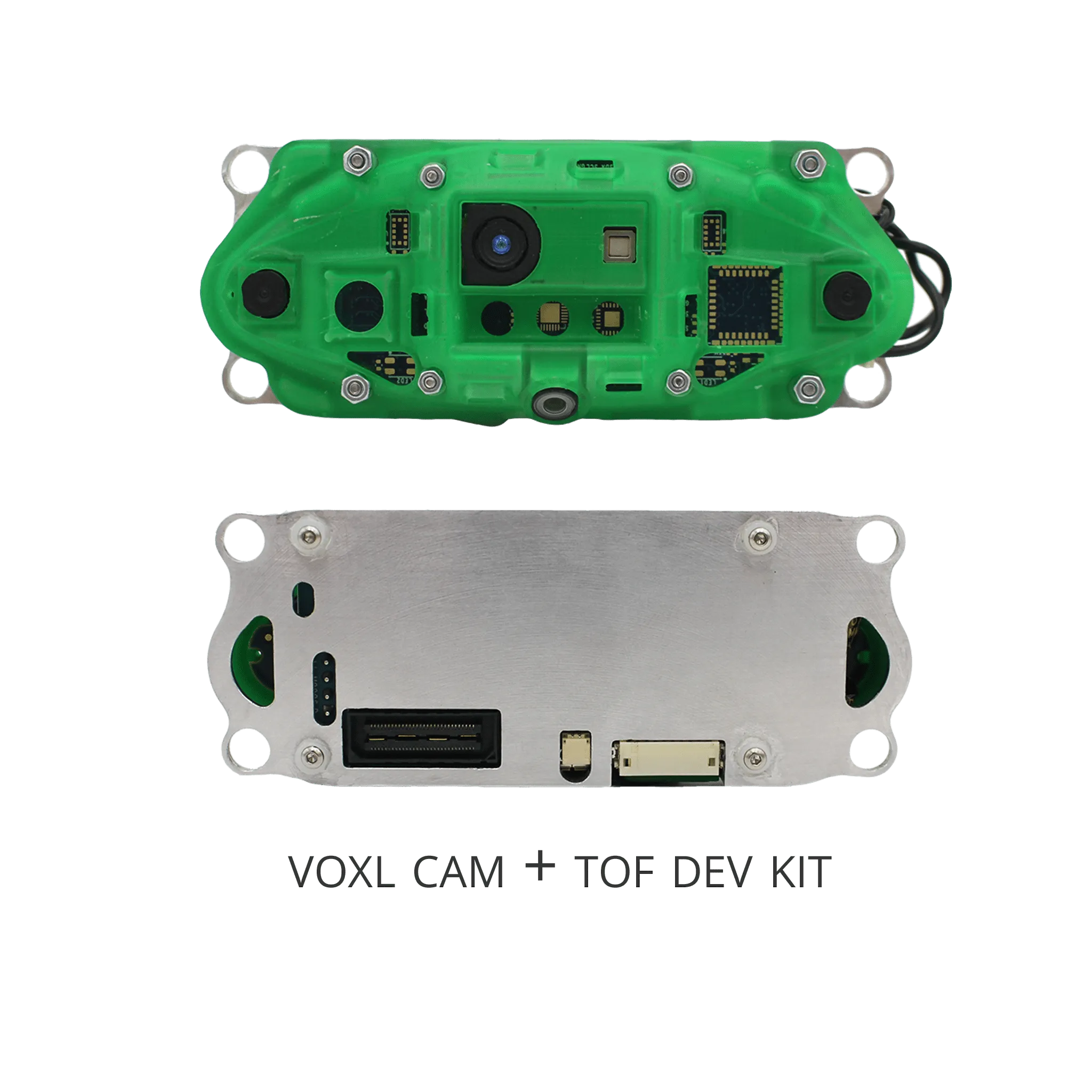

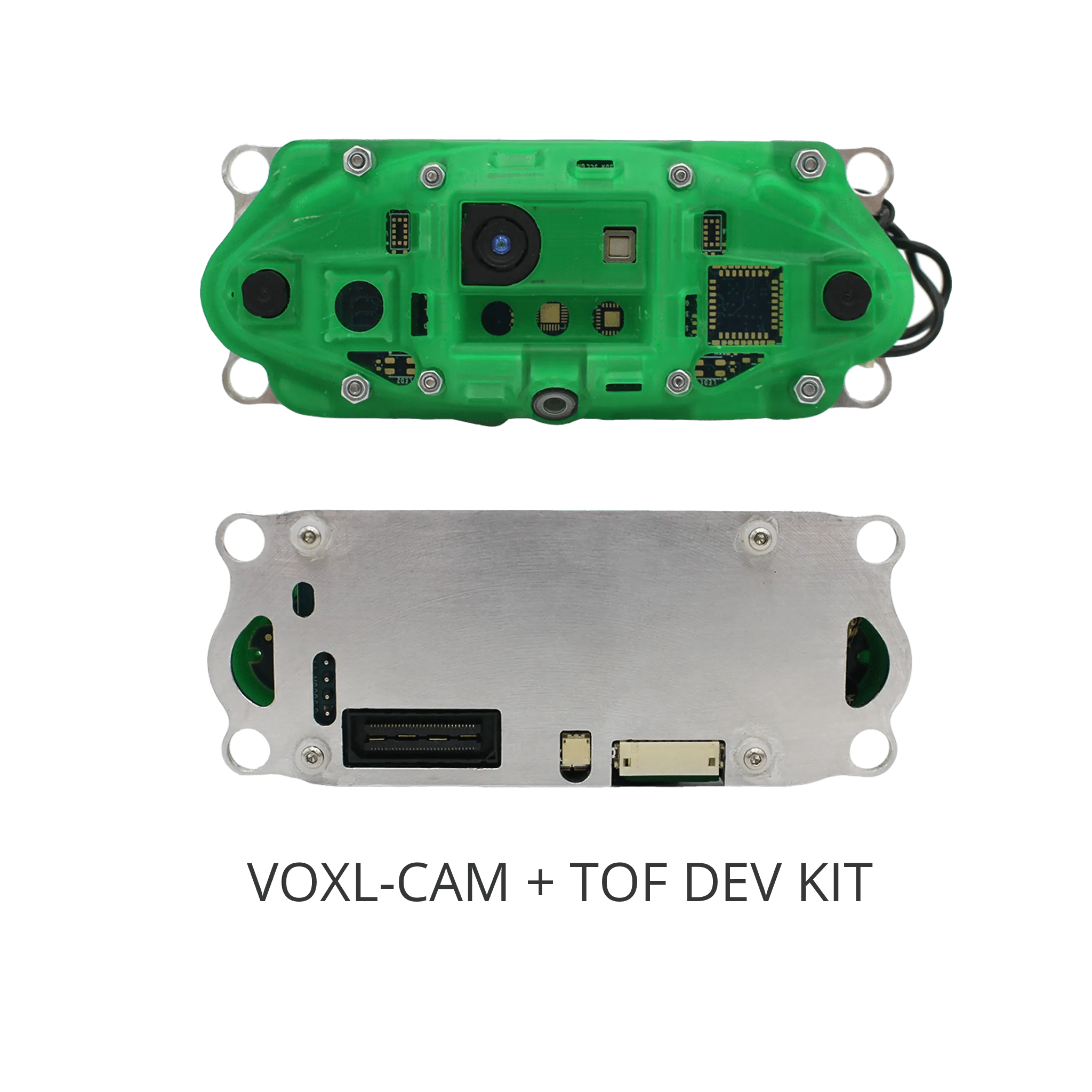

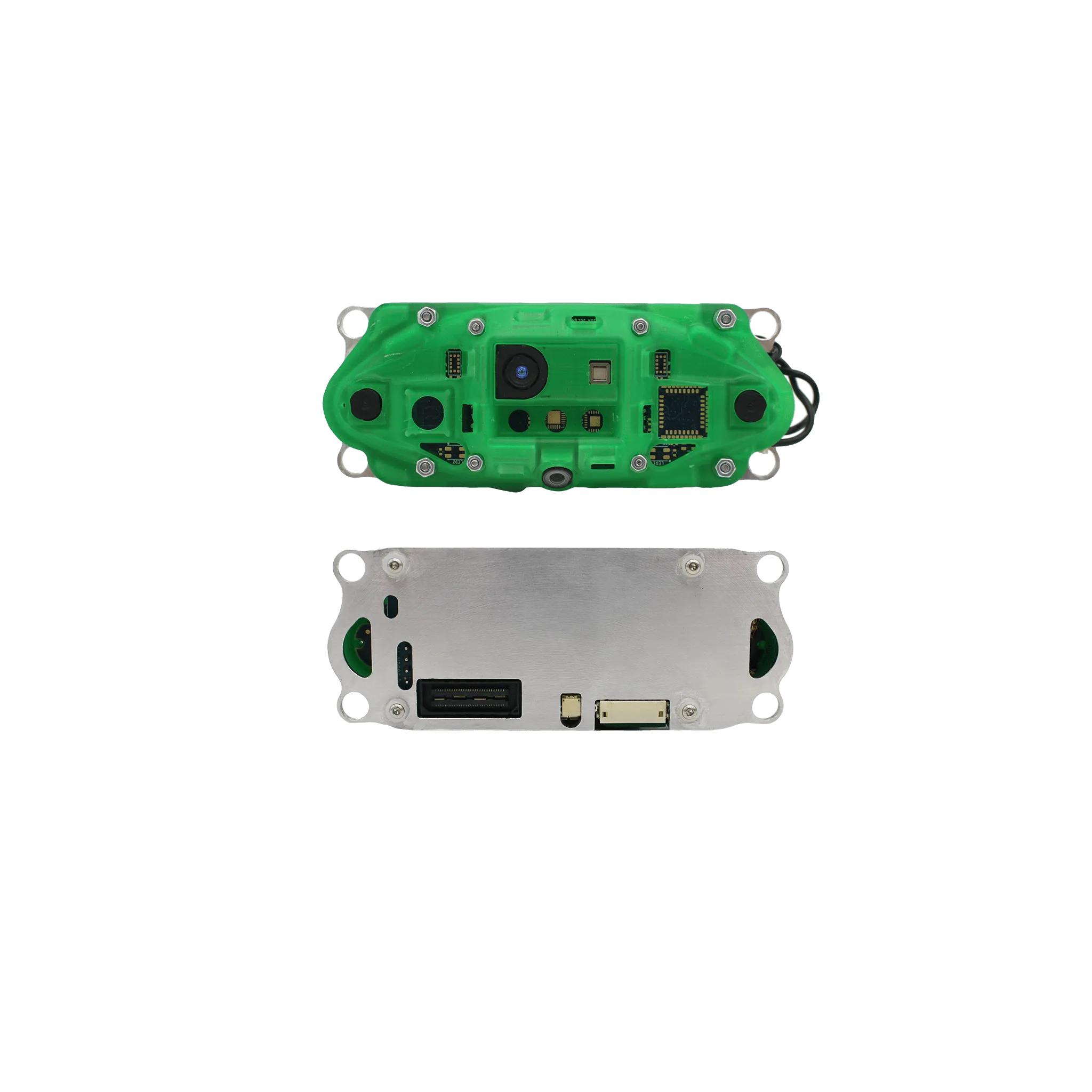

Note: the TOF version is obsolete due to parts shortage

VOXL Compute onboard

  • Integrated Qualcomm Snapdragon 821 premium tier chipset onboard: 4 cores up to 2.4 GHz, 14nm, 4GB LPDDR4 PoP 1866MHz
  • VOXL SDK
  • Open-source software: Open CV, ROS, Docker, PX4,
  • GPS-denied navigation, depth mapping, object detection, obstacle avoidance, SLAM

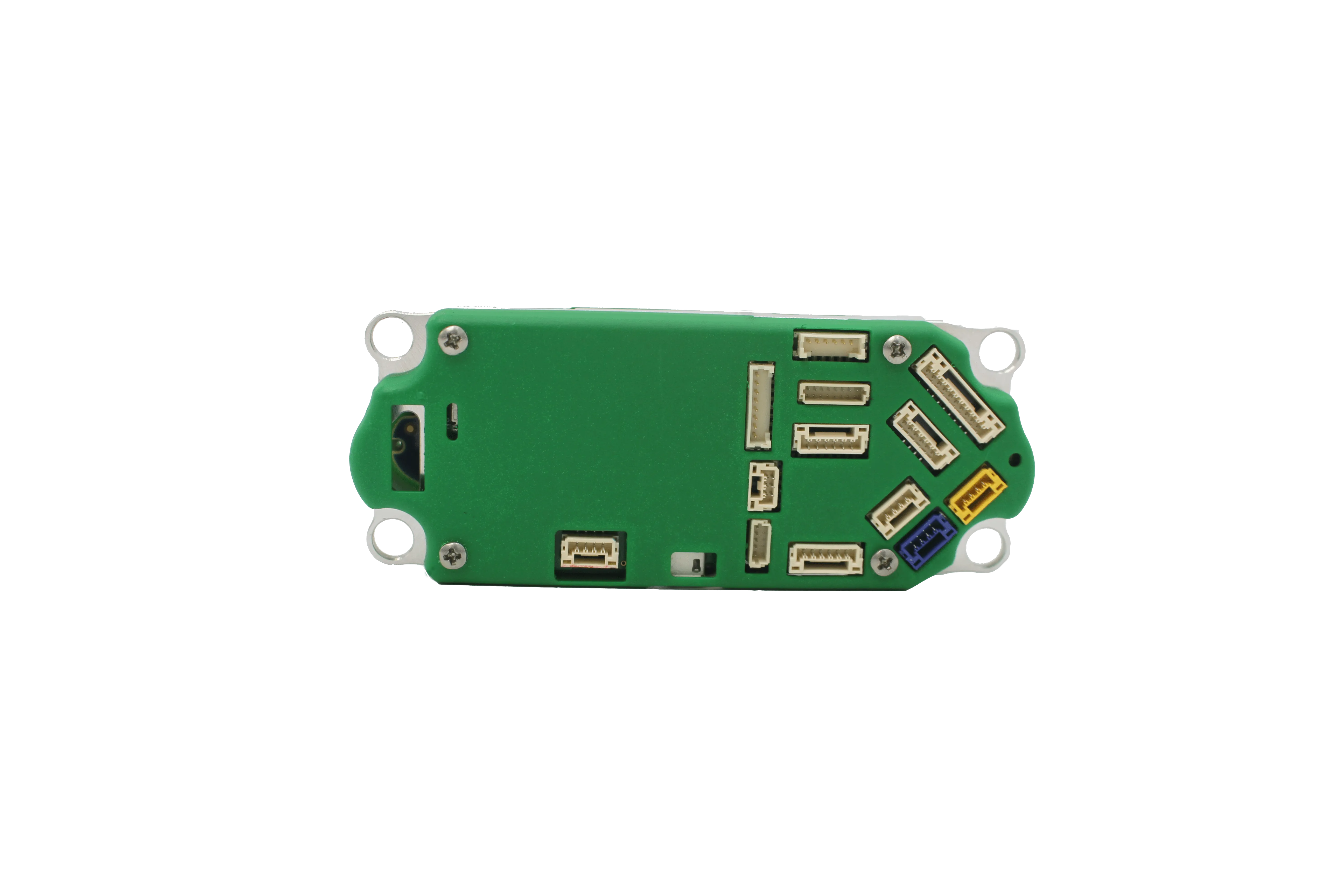

Flight Core onboard

  • PX4 & Flight Controller
  • STM32H7 Performance
  • Onboard 3x IMU and Barometer

Connectivity

  • Optional 4G for cellular carrier-based networks

Modularity

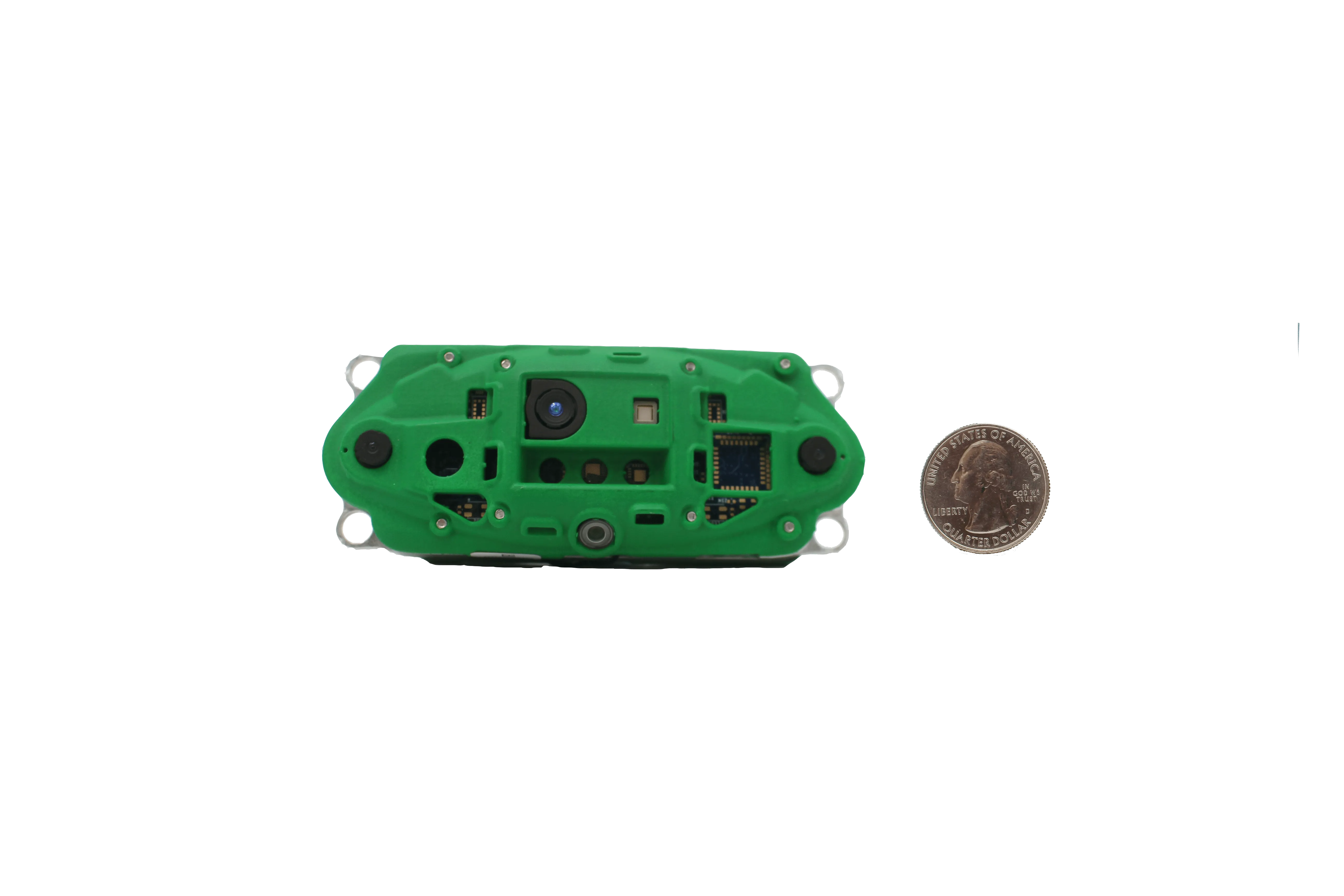

  • Small form factor, base configuration weighs 57.5g, 87g with flight controller and modem
  • Enable perception for a breadth of different applications (robots, drones, IoT devices)

Technical Details

What's Included

    MPNDescription

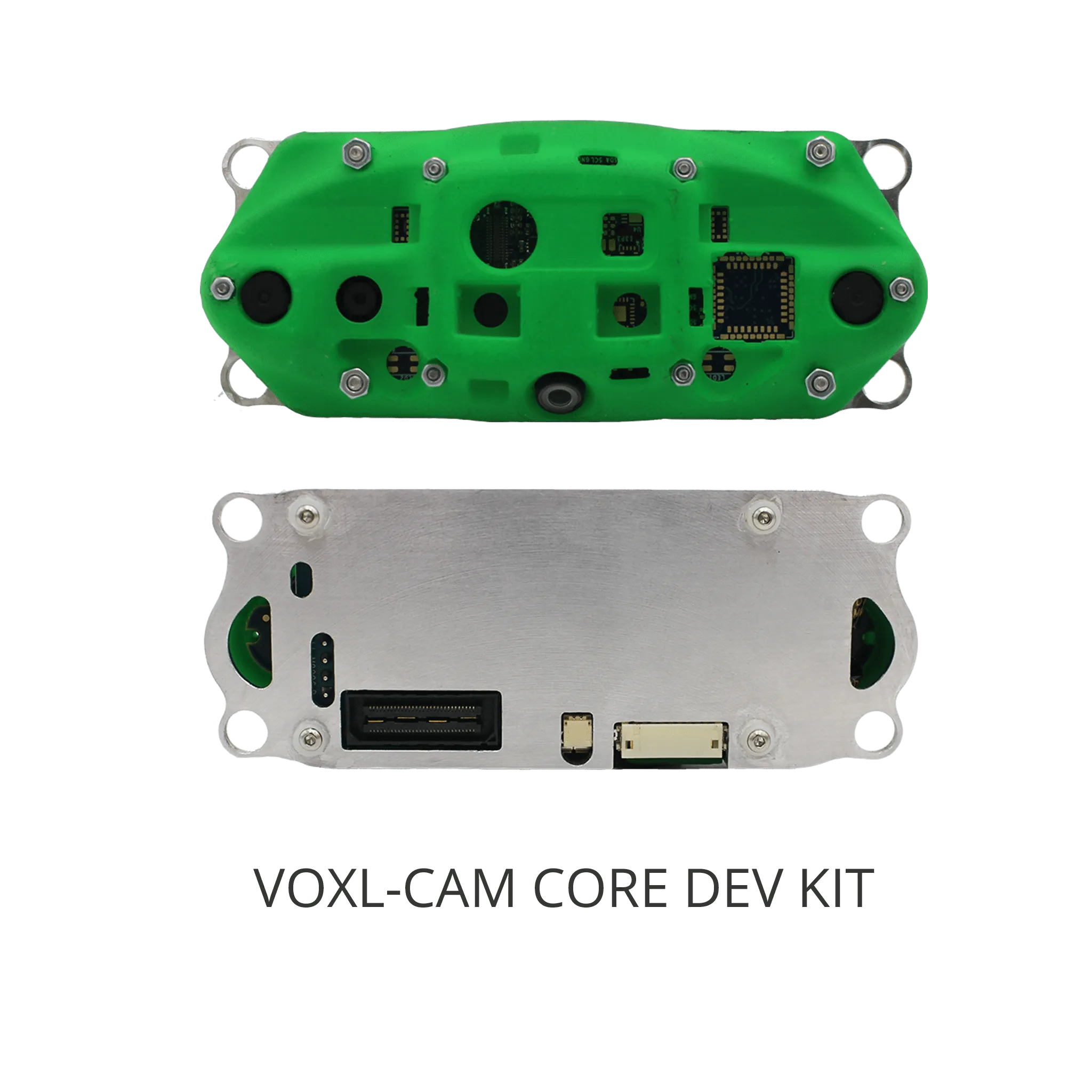

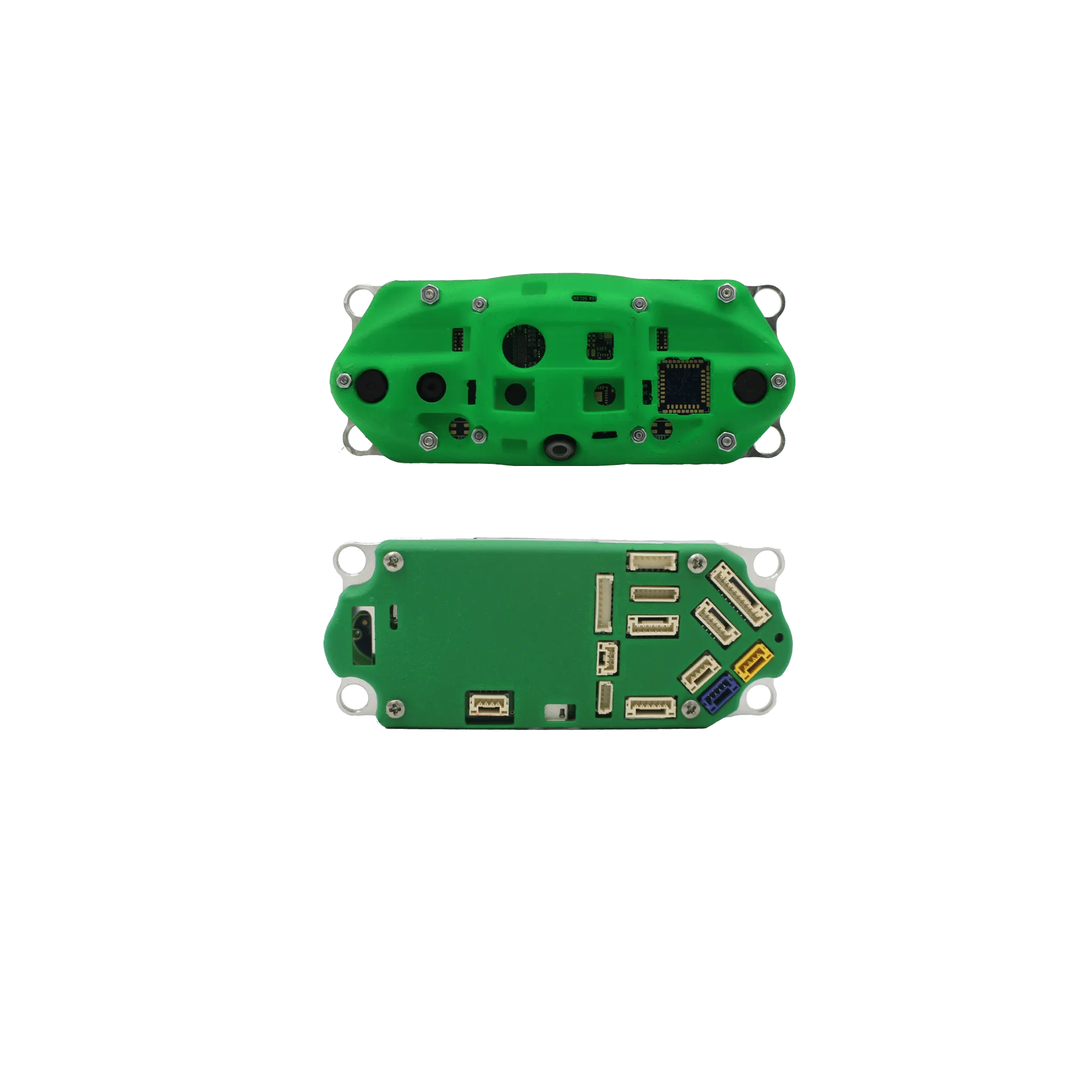

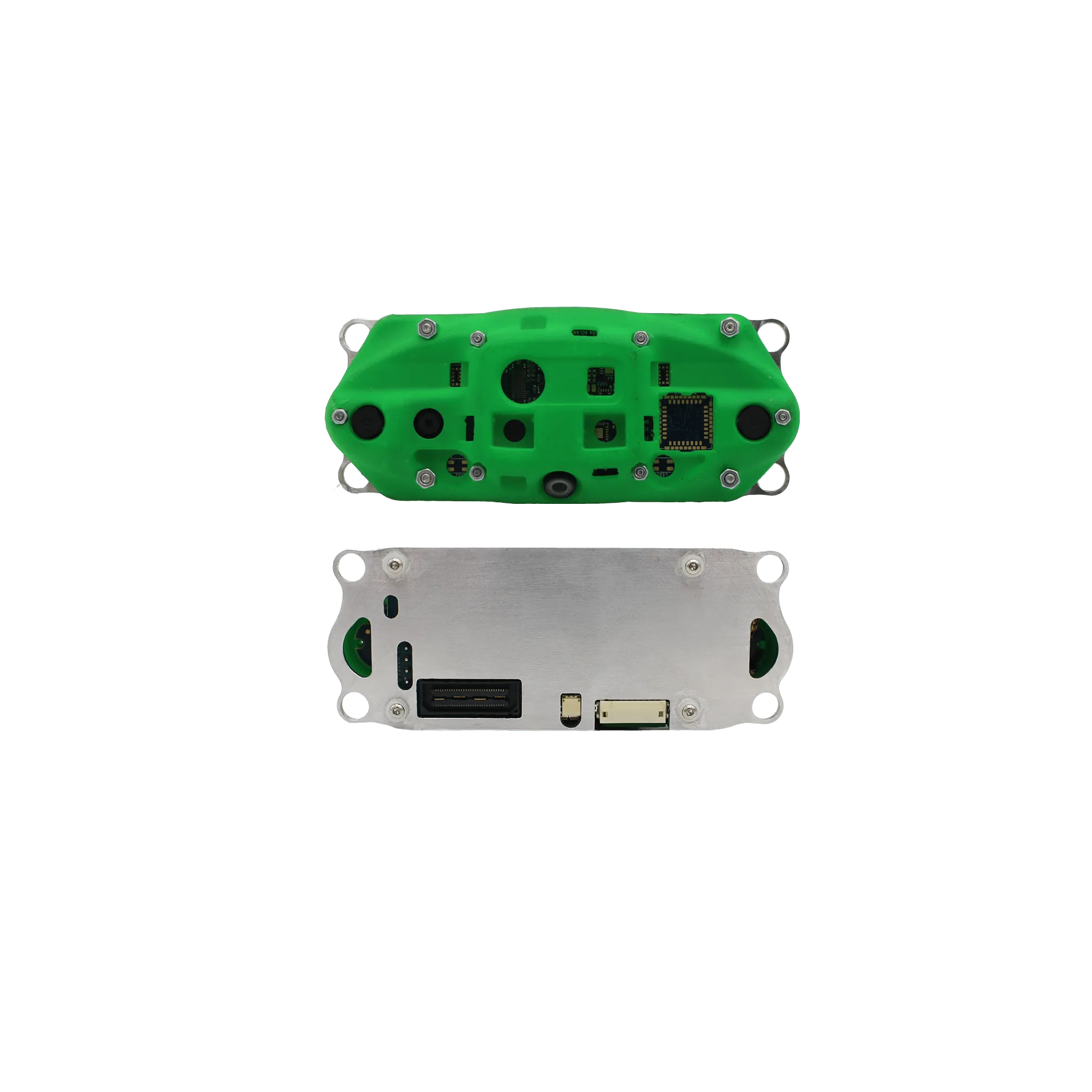

    MCM-C0001-1-V2-C3-K1Core Dev Kit, VOXL 1, 4k, Stereo, Tracking

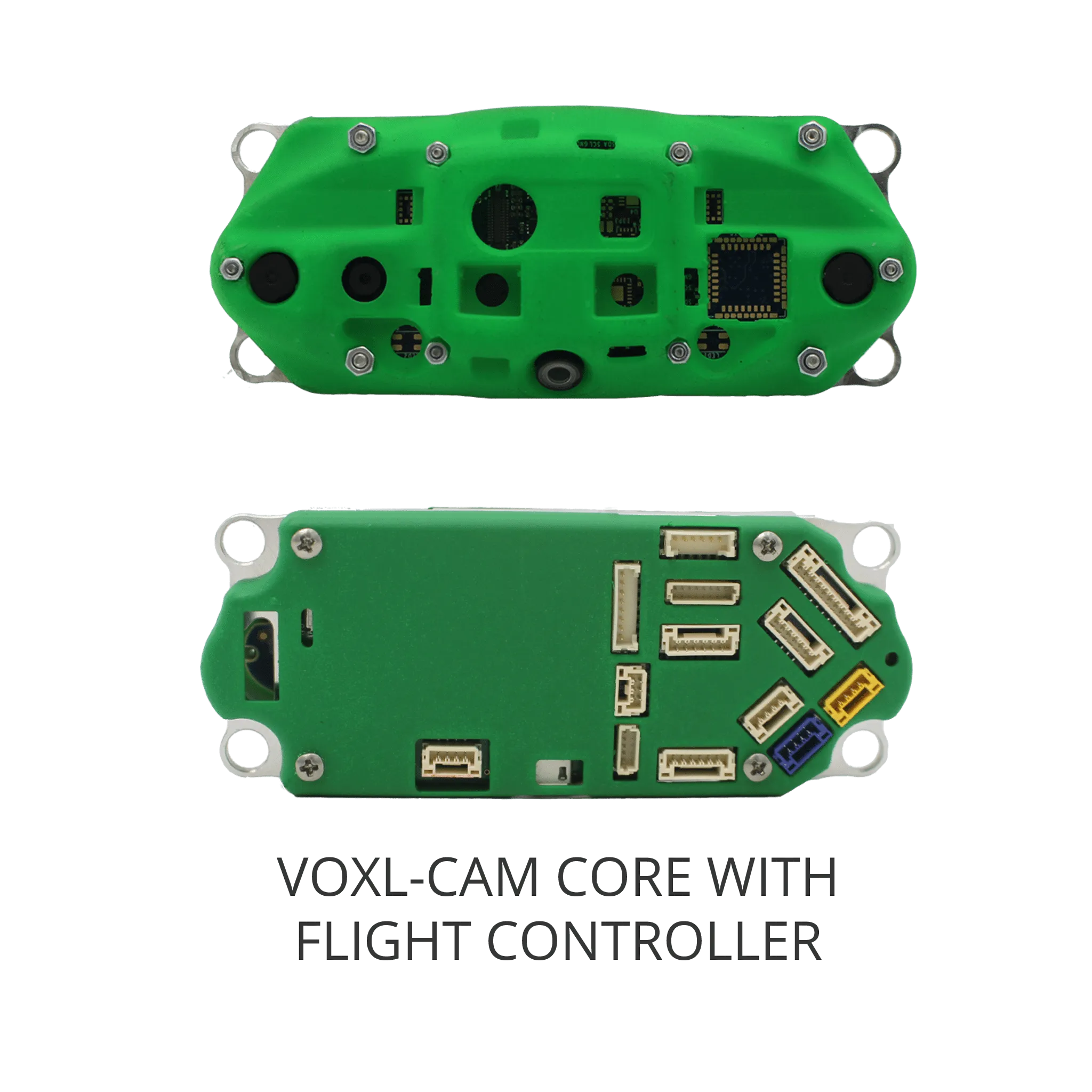

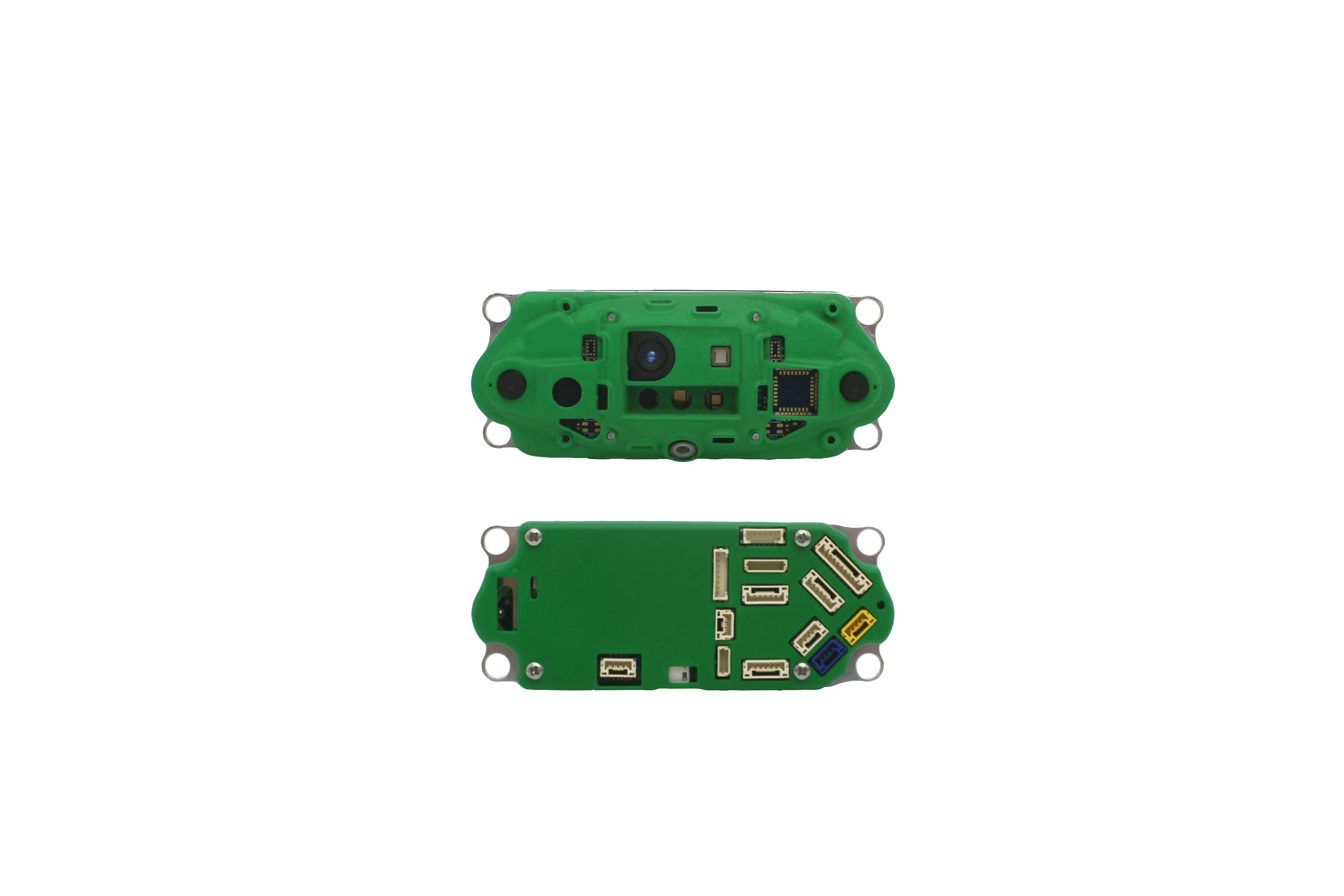

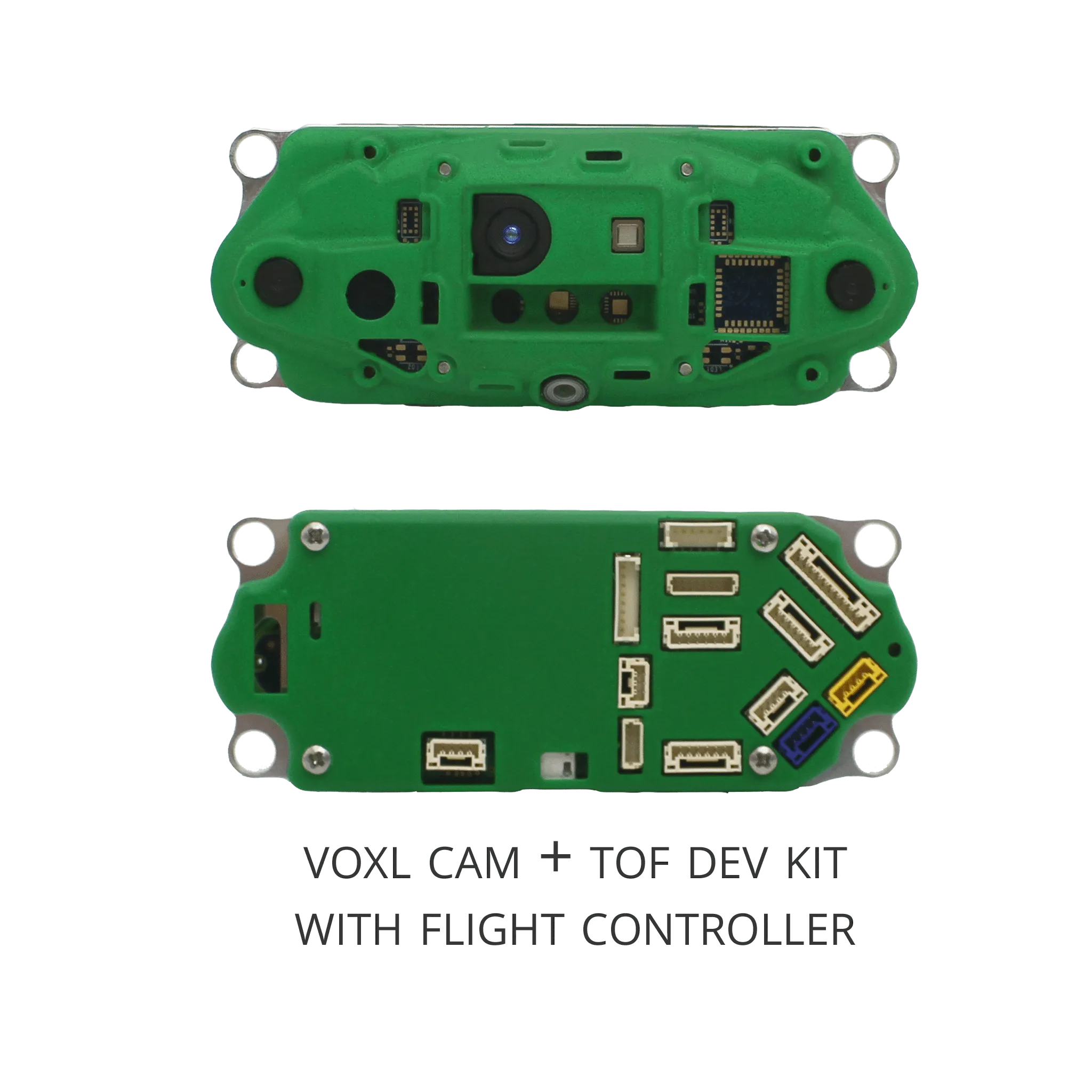

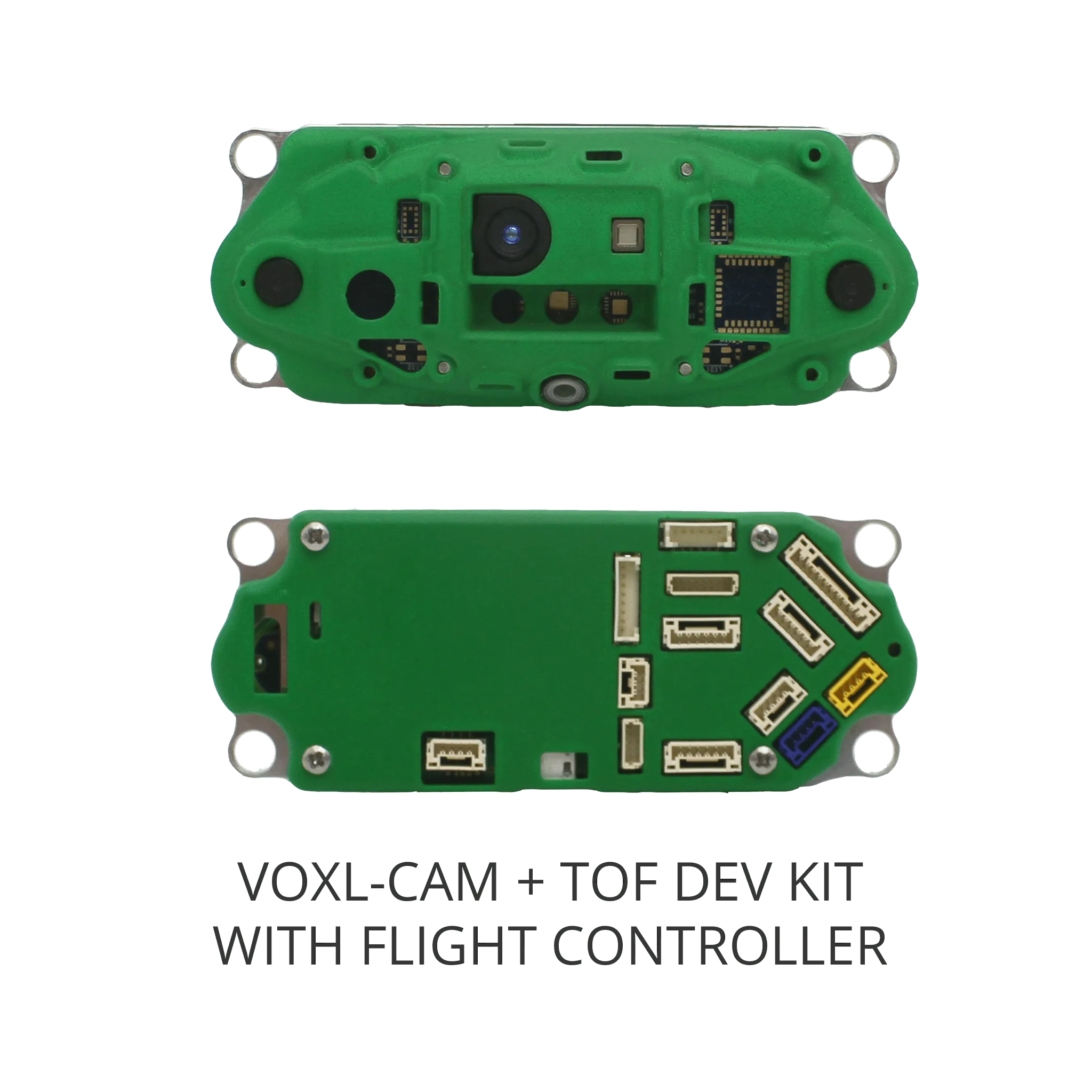

    MCM-C0001-1-V2-C3-FC2-D2-K1Core Dev Kit w/ built-in Flight Controller

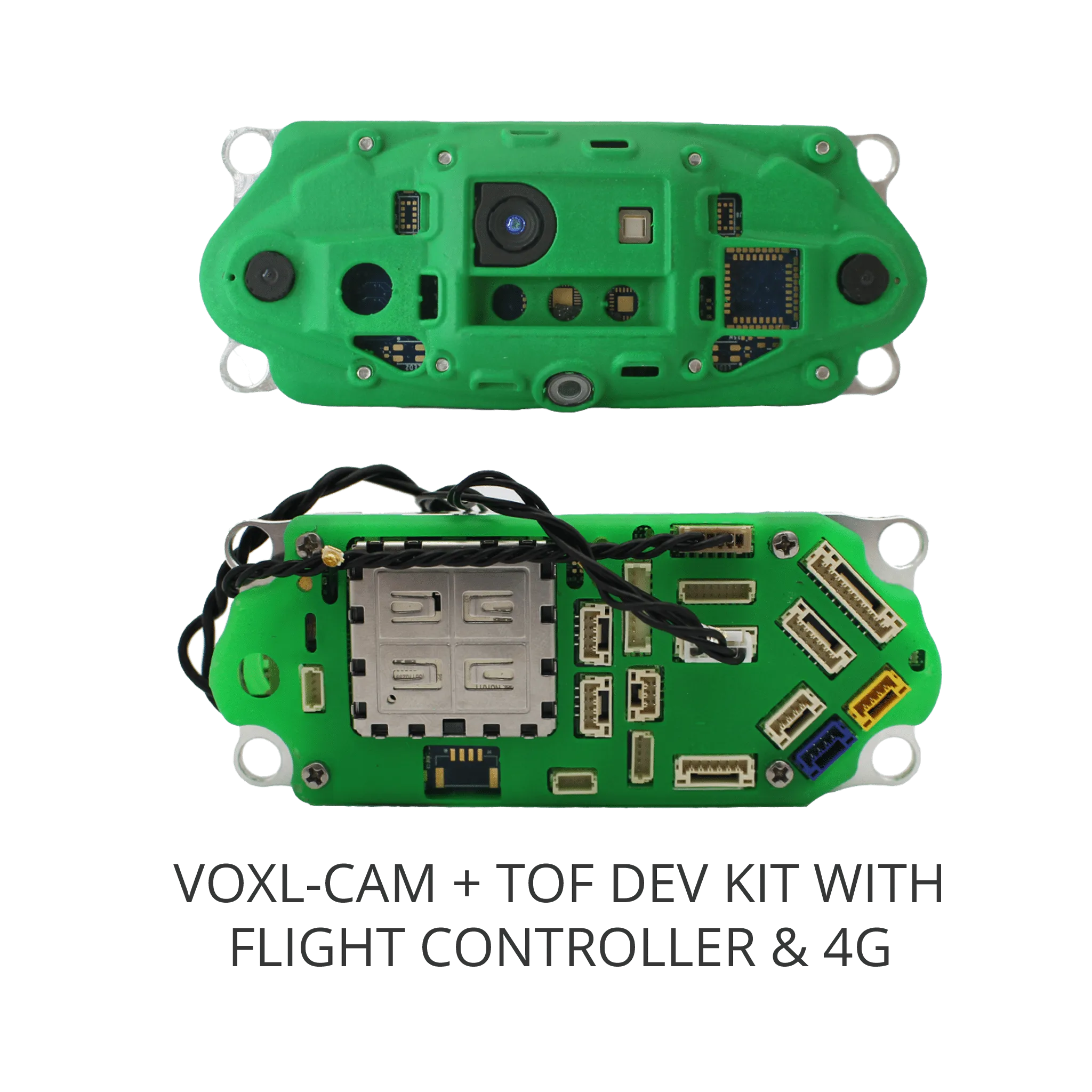

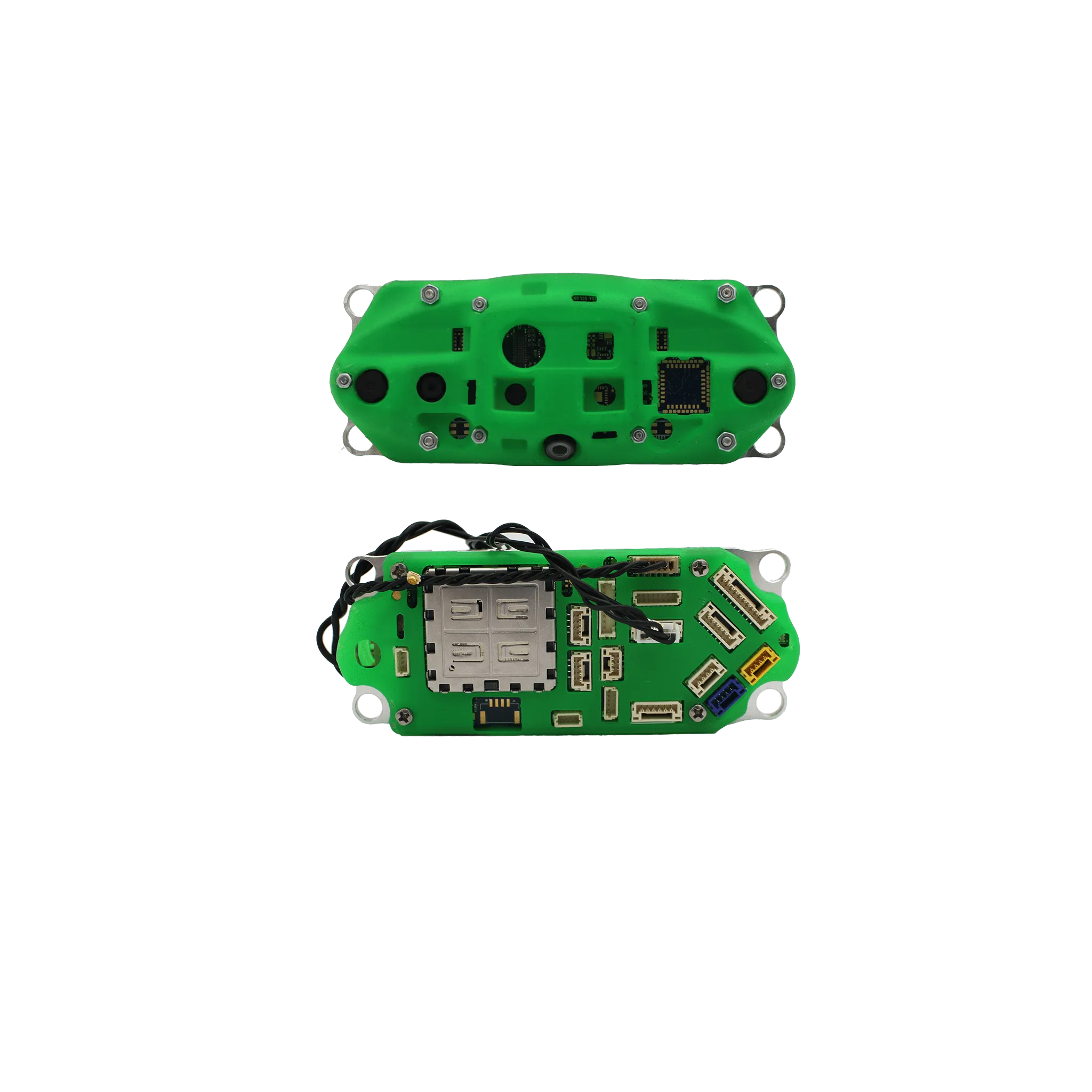

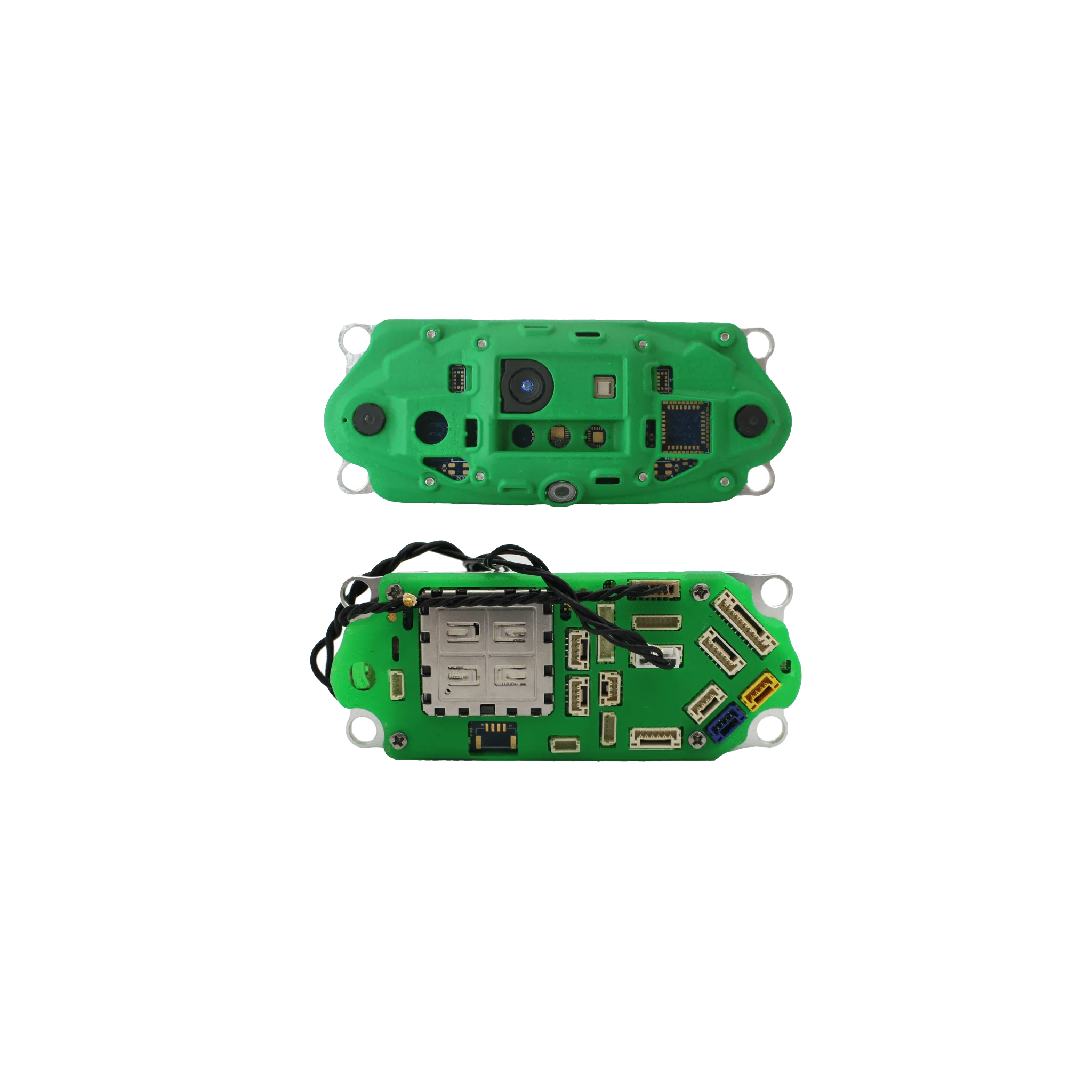

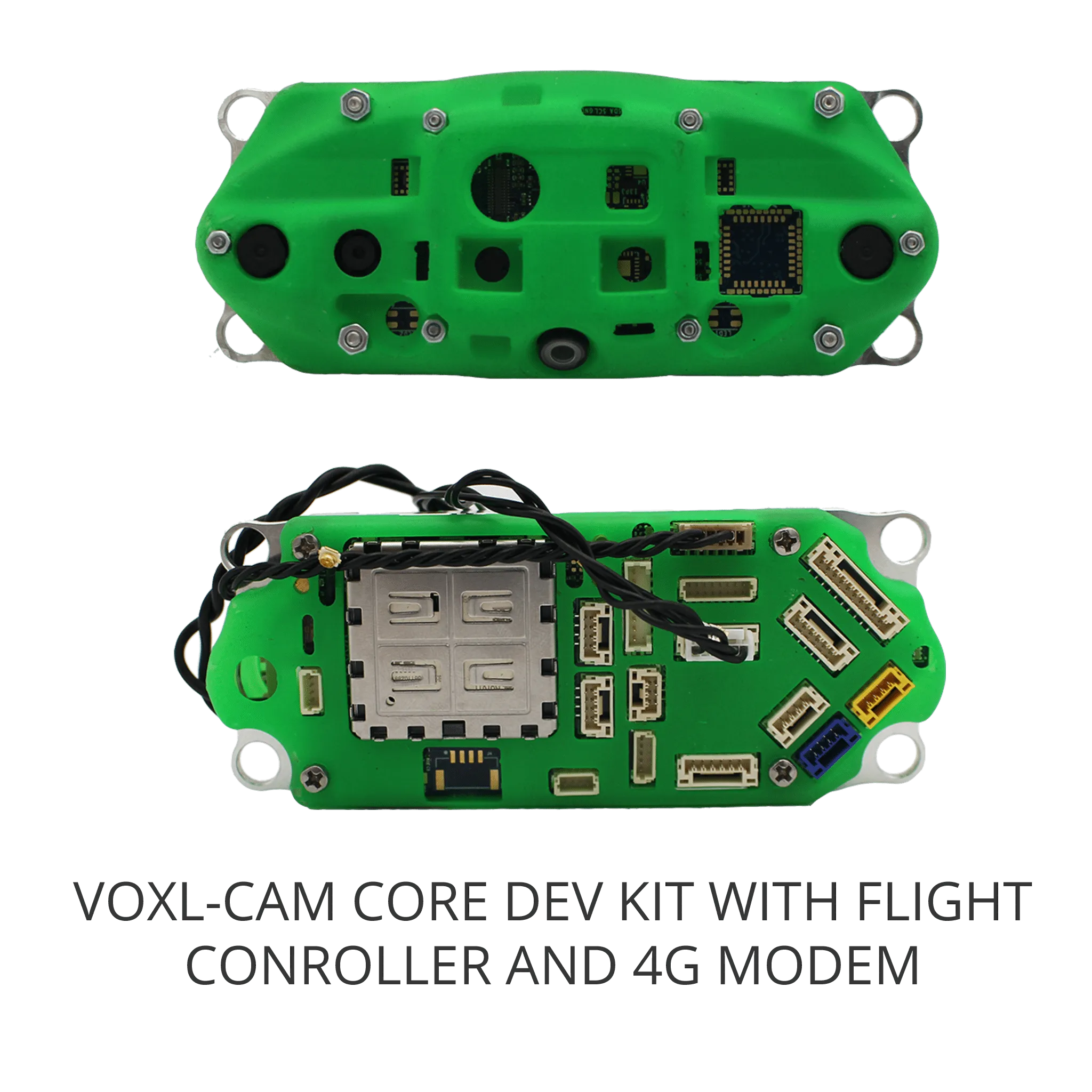

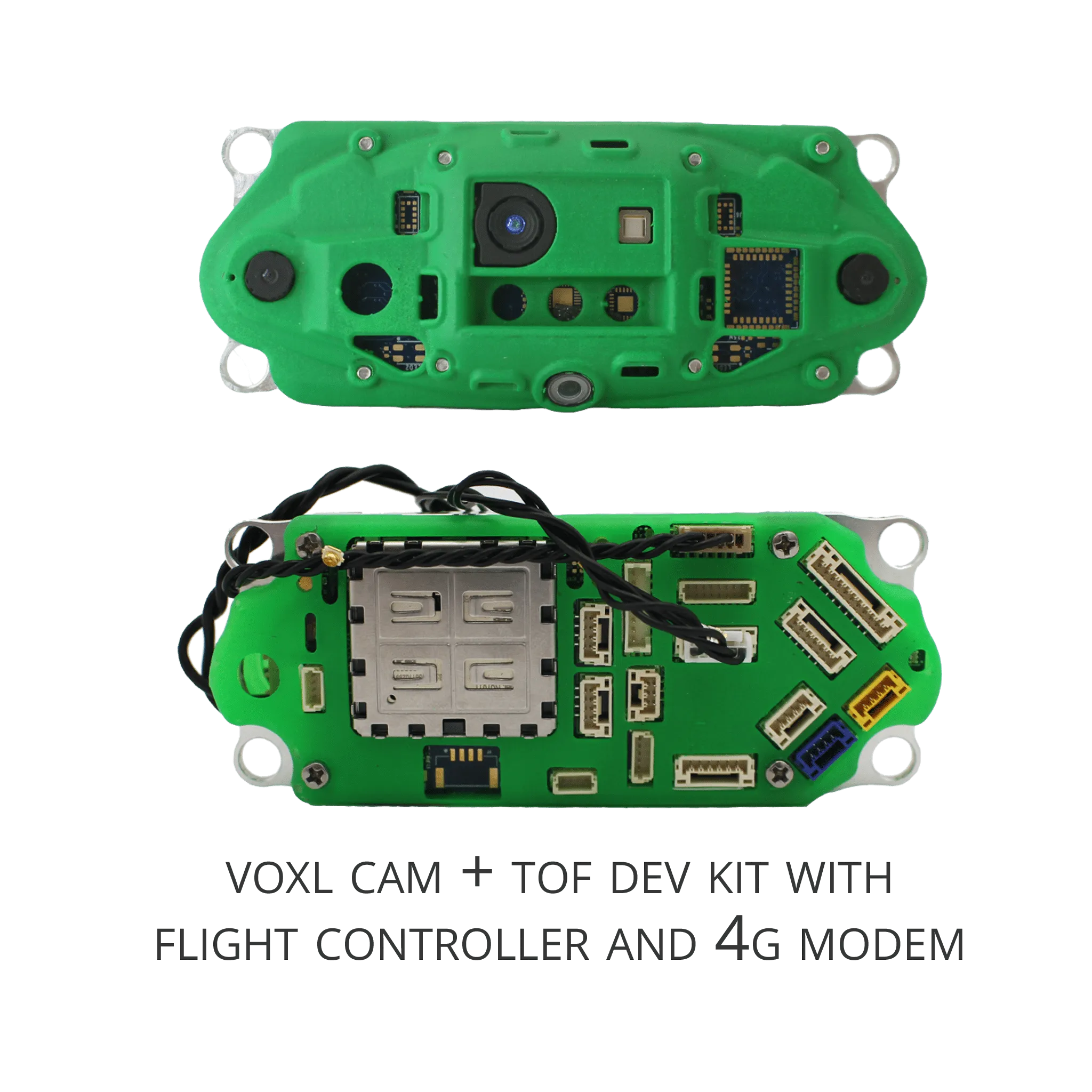

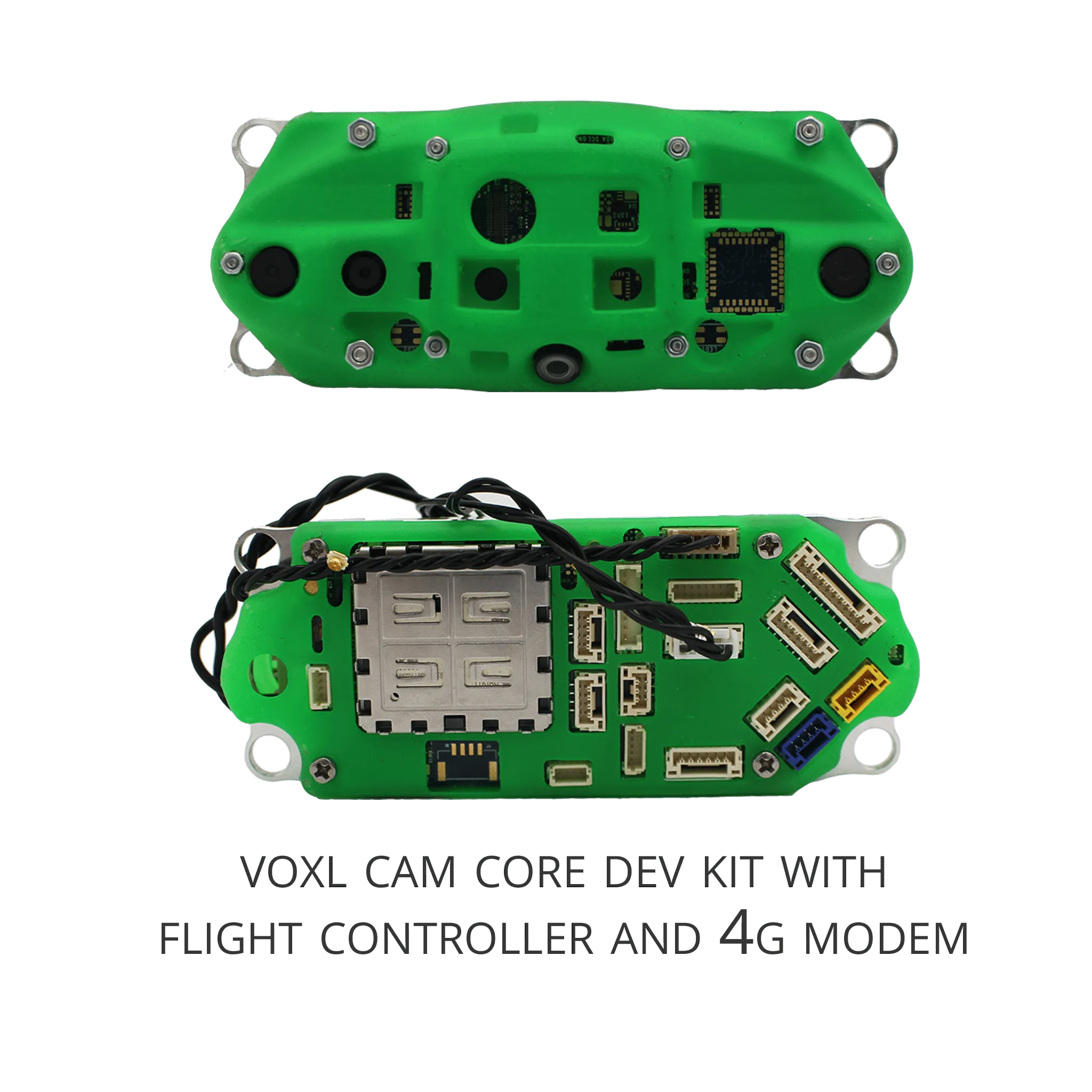

    MCM-C0001-1-V2-C3-FC2-M8-K1Core Dev Kit w/ Flight Controller and 4G Modem (North America)
    MCM-C0001-1-V2-C3-FC2-M5-K1Core Dev Kit w/ Flight Controller and 4G Modem (Europe)


    Export Information

    ItemValue

    ECCN
    EAR99
    Harmonized Tariff Schedule (HTS) Code8542.31
    Country of OriginUSA
    Radio Frequencies Used2.4GHz / 5.8GHz


    VOXL CAM Fully Integrated Robot Perception System
    • No
    • Yes
    • None
    • NorthAmerica
    • Europe

    $ 60.03

    $ 46.18

    Please select combo product attributes
    The combo subtotal is $,SAVE$
    Unavailable
