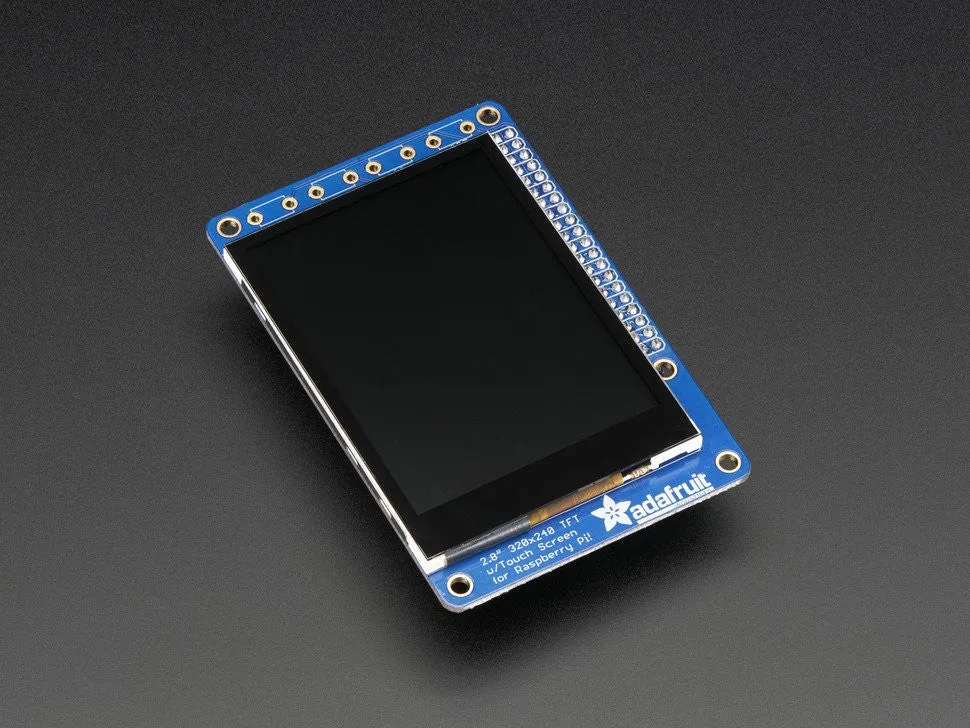

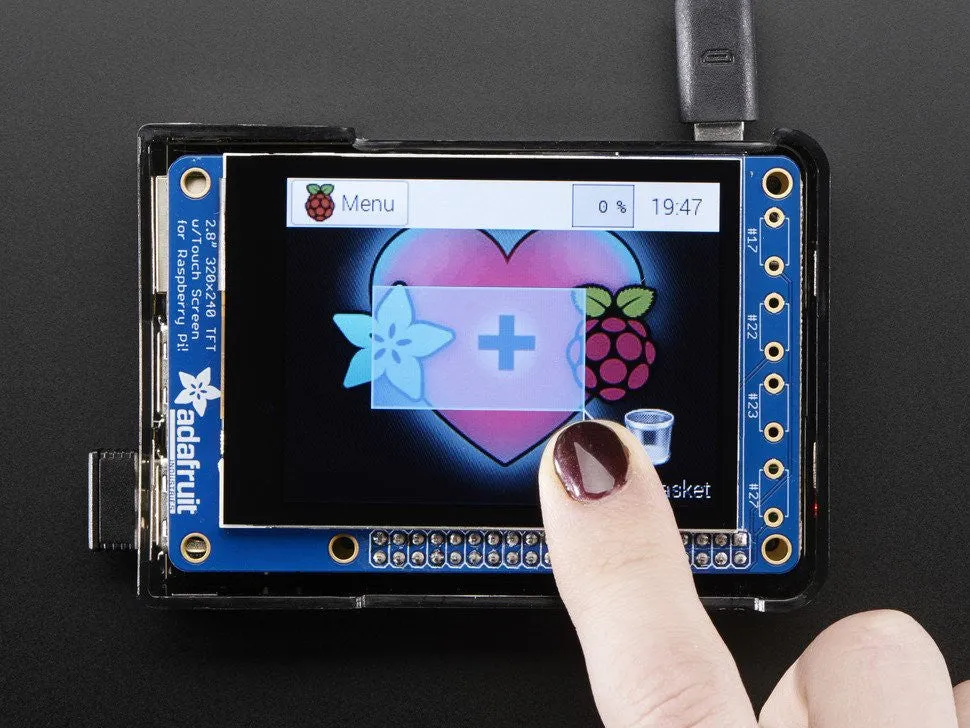

This display features a 2.8" display with 320x240 16-bit color pixels and a capacitive touch overlay. That's right, instead of a resistive touchscreen, which requires a fingernail or stylus, you can now use a fingerpad. The screen looks much nicer, with a black bezel and glass overlay.

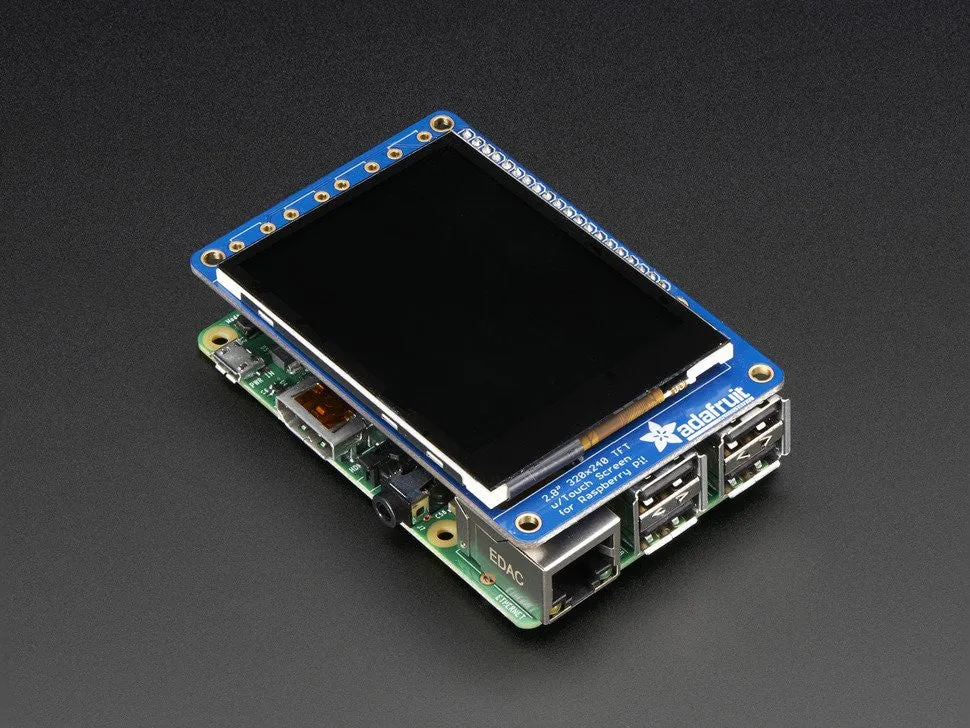

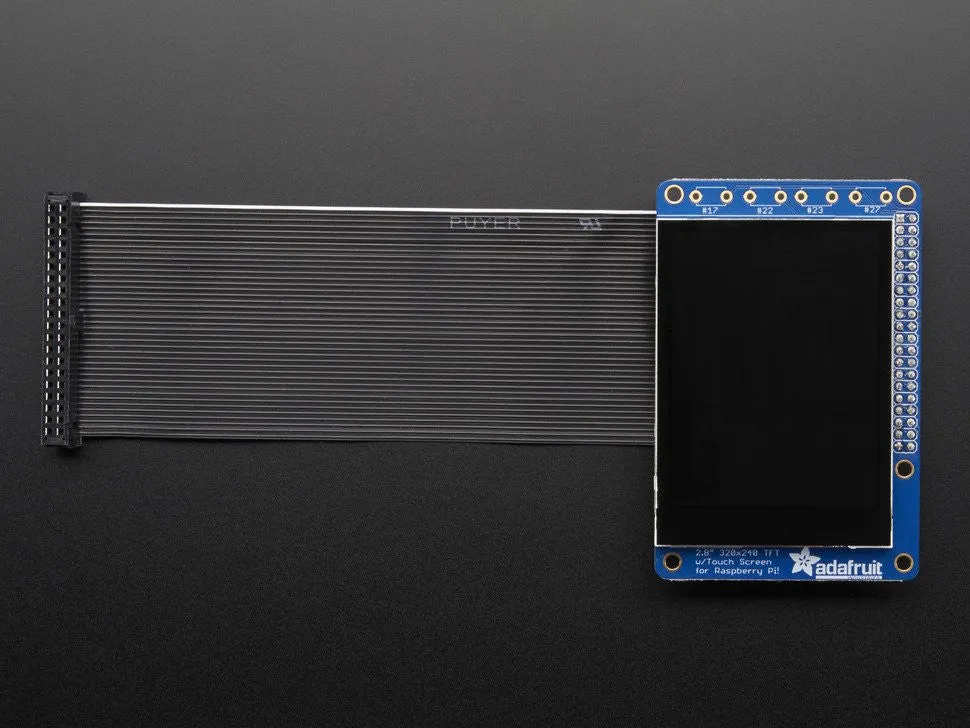

This updated design fits perfectly onto the Pi Model A , B , Pi 2 or Pi 3!  Now matches the outline of the Raspberry Pi 2 and Model B . It also has all 40 pins GPIO pins brought out so you can connect a 40-pin GPIO cable underneath.

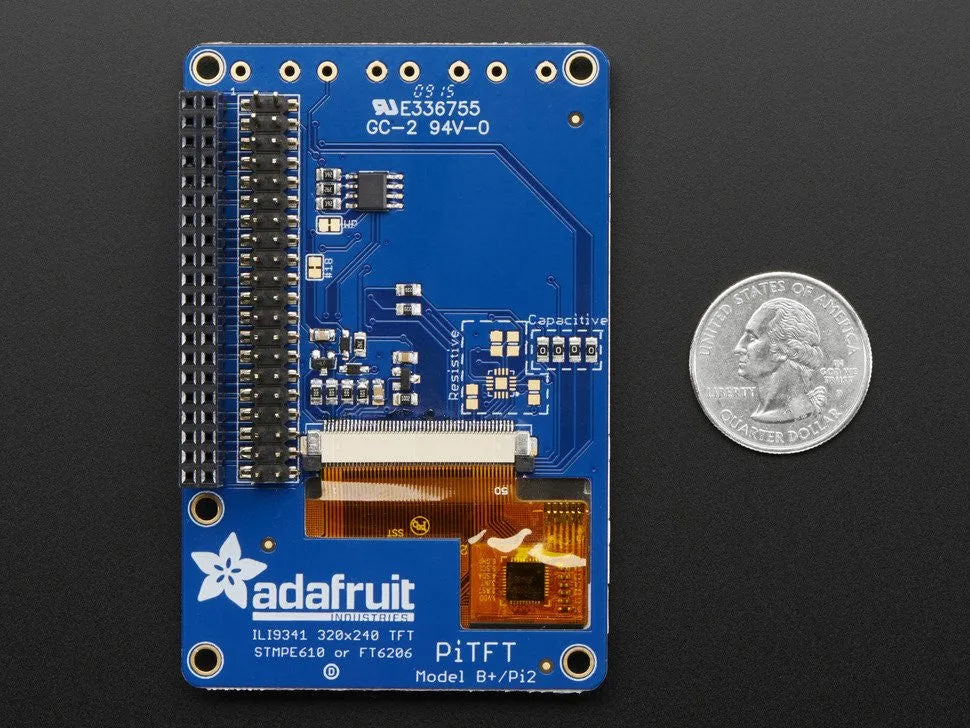

The display and touchscreen uses the hardware I2C Pins (SDA & SCL), SPI pins (SCK, MOSI, MISO, CE0) as well as GPIO #25 and #24. All other GPIO are unused and you can still share the I2C pins with sensors, LED drivers, etc. There are 4 spots for optional slim wired to four GPIOs, that you can use if you want to make a basic user interface. For example, you can use one as a power on/off button. if you need them!

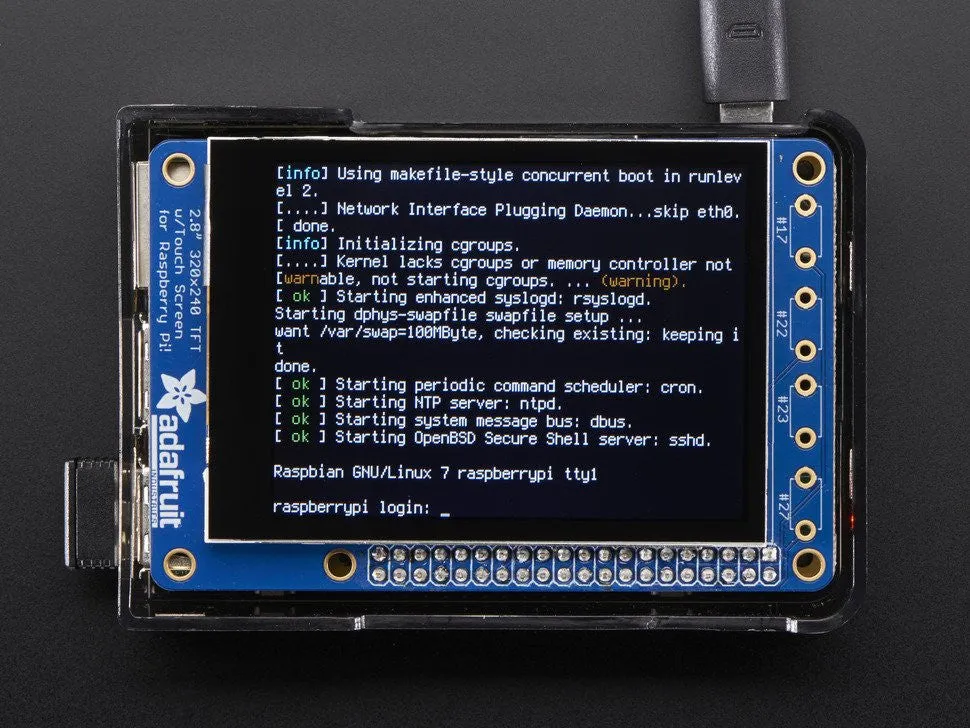

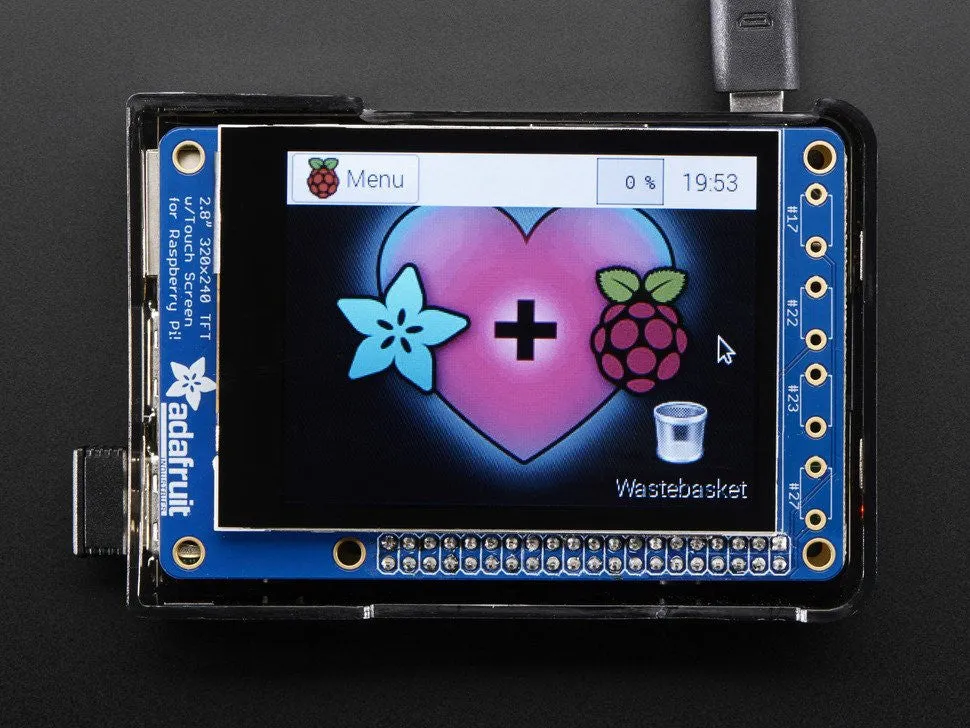

Use it for console access or easily pop up X11 onto the PiTFT for a mini monitor, although its rather small at 320x240. Instead, we recommend using PyGame or other SDL-drawing programs to write onto the frame buffer.

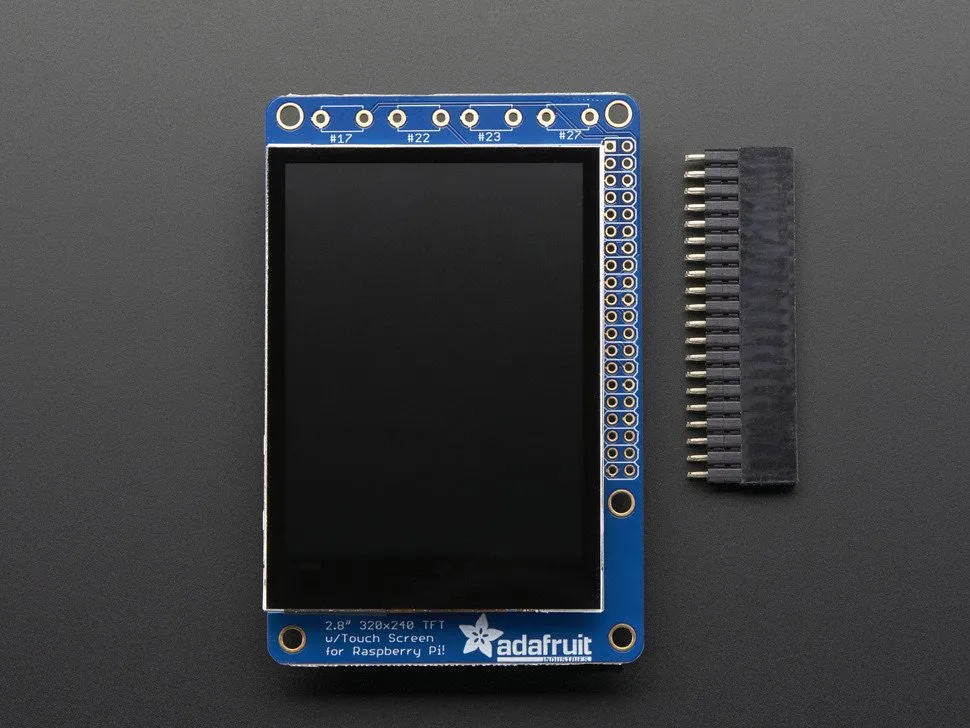

Raspberry Pi computer and enclosure not included! This display comes as a Mini Kit, some light soldering is required to attach the 40-pin connector included to the PCB. Soldering iron and solder is not included!
